Spare Smart Key for a Volkswagen Tiguan at Devonshire Mall: The MQB-Evo Online-SVM Workflow

The story behind the second key

A 2021 Volkswagen Tiguan parked near the Devonshire Mall corridor in South Windsor needed a spare smart proximity key. One working key in the household, no incidents, no panic. The owner had read the routine warning that any modern Volkswagen running on the MQB-Evo platform pairs the immobilizer through online software activation, and that adding a second key after losing the only one becomes a much bigger job. The owner chose to handle it before that day arrived.

A single mobile visit to the parking spot, on-site programming, and the Tiguan left with two fully working keys: the original plus an OEM-equivalent four-button proximity fob cut to the door blade code, paired through the BCM, and signed off through Volkswagen Group online SVM credentials.

From the Google Business Profile update

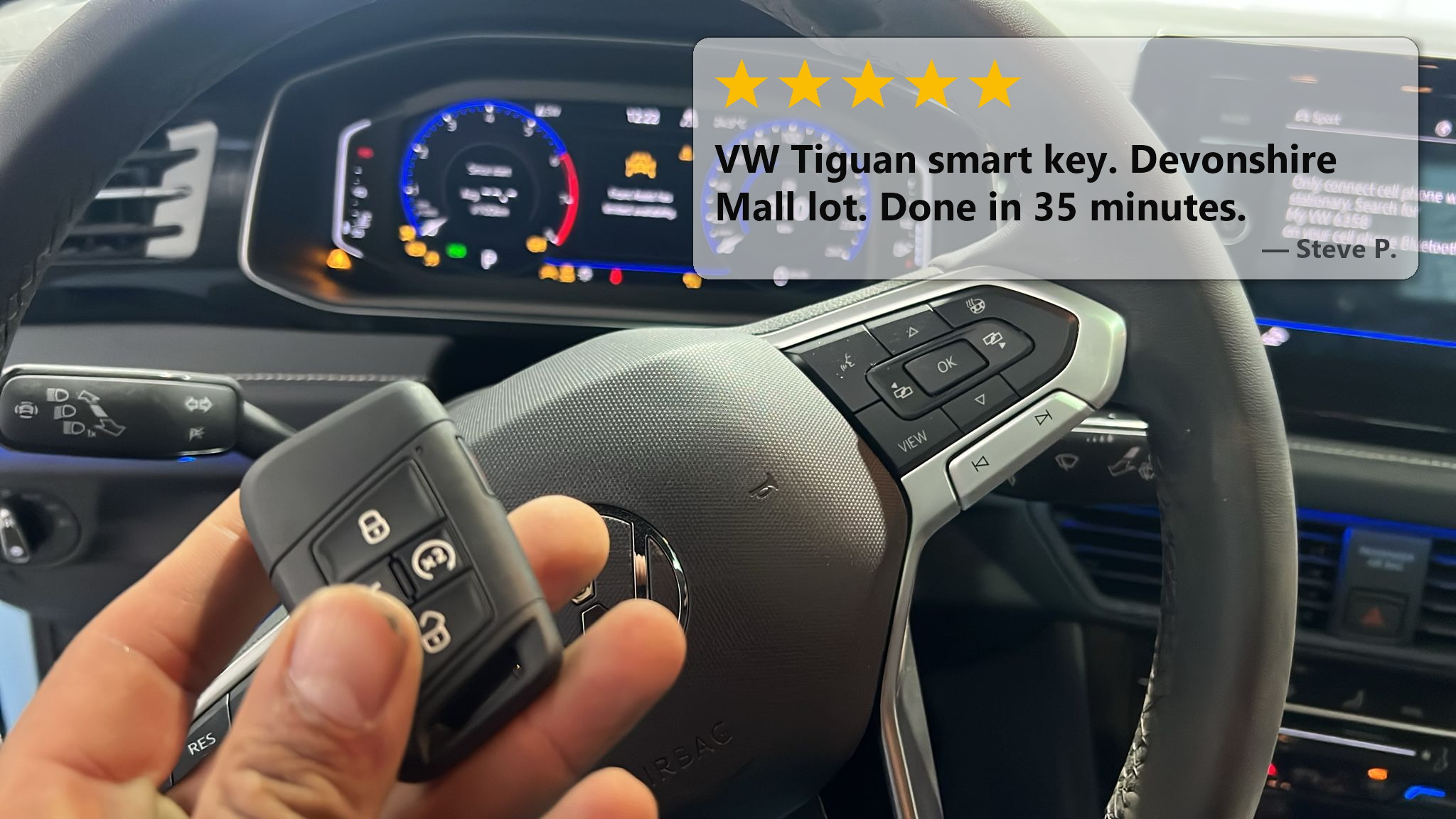

The image below is the actual photo Canadian Locksmiths posted to its Google Business Profile after the appointment. The short customer note on the embedded card reads:

★★★★★

"VW Tiguan smart key. Devonshire Mall lot. Done in 35 minutes."

Shared by Steve P. on the Canadian Locksmiths Google Business Profile

Vehicle and module specifics

The Tiguan covered in this post is the second-generation North American Tiguan built on Volkswagen Group's MQB-Evo architecture. The MQB-Evo immobilizer is integrated into the Body Control Module and is read/written through the manufacturer's online software activation system, not the older offline component-protection workflow that earlier MQB cars (2009-2017 Tiguan, original Mk1) used.

The 5G6 prefix on the part numbers reflects the MQB component family Volkswagen uses across the Tiguan, Golf, Passat, and Atlas in this generation. The 752 and 753 suffix split tracks the radio frequency variant. Canadian Locksmiths stocks both variants to fit any Canadian-spec Tiguan that rolls up to the appointment.

Tools used on this job

ODIS is Volkswagen Group's factory diagnostic and configuration software. It is the only tool that completes an MQB-Evo key adaptation in a way that leaves zero diagnostic trouble codes in the BCM, gateway, and immobilizer paths. Generic aftermarket programmers can sometimes write a key into older MQB cars, but the MQB-Evo immobilizer rejects them at the SVM handshake stage. That is the single most common reason a budget shop hands a Tiguan back with a fob that locks and unlocks but will not start the engine.

What gets done on the appointment

The high-level sequence the technician follows for a Tiguan spare smart key:

1. Confirm vehicle details. Read the VIN at the dash and door jamb, note the model year and trim, and confirm one working key is present. Quote the spare rate against the verified fob part number.
2. Cut the mechanical backup blade. If the door lock code is on file with Volkswagen, the blade is cut to code on the Triton PLUS. If not, the technician decodes the driver door cylinder with the Lishi HU162T decoder first.
3. Pair the fob through the BCM. With one working key present and the ODIS session active, the new fob is added to the immobilizer key memory through the BCM adaptation channel.
4. Run online SVM activation. ODIS opens a ticket against the Volkswagen Group server, the new key signature is validated, and the BCM is signed off online. This is the step that aftermarket tools cannot replicate.
5. Verify push-button start, passive entry, panic, and trunk. The technician walks all four doors, confirms passive unlock and lock, presses each button on the new fob, and runs an engine start.
6. Hand off. The original key remains fully functional. The new fob is given to the owner along with the cut blade tucked into the fob's mechanical backup slot.

Troubleshooting common Tiguan key issues

These are the calls Canadian Locksmiths handles every week from Tiguan owners who tried a budget option first.

• The new fob locks and unlocks but the engine will not crank. The fob was paired at the BCM but online SVM activation was never run, or the SVM ticket failed and the previous shop did not retry. ODIS can recover this by re-running the activation against the BCM's current state.
• The Tiguan accepts the new fob, but the original key now refuses to start the engine. Sometimes an aftermarket programmer wipes the existing key memory instead of appending to it. If both keys are still physically available, ODIS can re-add the original through the same adaptation channel.
• Passive entry works for the driver door only. The antenna in the offending door is either disconnected at the harness or the door antenna code was not properly assigned in long coding. ODIS reads long coding and exposes the conflict.
• Push-button start works but the panic button does nothing. The radio frequency variant on the fob does not match the Tiguan's receiver. 5G6959752 and 5G6959753 are not cross-compatible across all markets. Canadian Locksmiths verifies the variant against the VIN before cutting.

Insider notes most owners never hear

The MQB-Evo immobilizer is one of the least-documented platforms in the consumer-facing locksmith world. The notes below are the technical reality from inside the work, not the marketing version. Senior Volkswagen field technicians will recognize all of these; budget shops generally do not.

1. MQB-Evo has no static immobilizer PIN

Older Volkswagen immobilizers (VAG 4.4, 4.5, and the original MQB on the 2009-2017 Tiguan) used a 4-digit or 7-digit Secret Key Code that a technician could write down, store, or even transfer between shops. MQB-Evo abandoned that model. Every adaptation runs a session-only challenge-response signed against Volkswagen Group's online MirrorServer. There is no number to retrieve, no master pin to leak, and no offline copy of the keying secret. Any shop or forum post claiming a static SKC works on a 2018-plus Tiguan is either making it up or describing an older car.

2. Component Protection and SVM are two separate gates

Component Protection (CP) binds individual modules to the VIN, including the BCM, gateway, instrument cluster, engine ECU, and steering column lock. SVM (Software Version Management) signs the actual key adaptation event. Both must be active for a fresh key to start the engine. The common rework call: a previous shop ran the SVM pass but never re-activated CP on the BCM after a swap, so the new key handles passive entry but the immobilizer refuses to release the engine. The recovery path is ODIS address 0017 (BCM), Component Protection, Activate, then re-run the SVM check.

3. ODIS-S vs ODIS-E matters more than the brand of cable

ODIS-S is the workshop version shipped to dealers and approved repair facilities. ODIS-E is the engineering version. ODIS-E exposes the raw Guided Functions tree, including the direct key-adaptation path under address 0001 (engine) and address 0017 (BCM) that ODIS-S routes through a sealed GFF (Geführte Fehlersuche) wizard. Canadian Locksmiths runs ODIS-S through an Opus IVS CarDAQ-Plus 3 J2534-3 (DoIP) pass-through with active GeKo (Geheimnisträgerkonzept) credentials. Annual cost of that stack lands in the four-figure CAD range, which is why it does not appear in the budget-locksmith toolkit.

4. The "pending SVM" half-paired key

A new fob can be partially paired: the key ID is written into the BCM's key memory, but the SVM acknowledgement from Volkswagen's backend never returns or times out. The BCM stores a "pending" flag against that key slot. Symptoms: the doors lock and unlock from the fob, the dashboard recognizes the key on push-button approach, but the immobilizer immobilizes and the engine never cranks. The fix is to open a new SVM session: the backend sees the pending flag against the BCM serial and completes the handshake. A shop running ODIS without an active SVM license cannot finish this and will simply hand the customer back a fob in pending state.

5. The 2018-2019 BCM voltage trap

Early MQB-Evo Tiguan, Golf Mk7.5, Atlas, and Jetta A7 builds shipped with a BCM firmware revision that aborts SVM if internal rail voltage drops below 11.8V during the write window. The Tiguan's smart junction box sheds non-essential loads at around 12.1V at the battery (climate fan, infotainment, ambient lighting), which masks the voltage drop on the OBD diagnostic line. The technician sees a healthy 12.3V on the scan tool and the write still fails because the BCM's internal regulator drops during programming. The fix is a battery support unit clamped to the jump points (not the OBD pin) and rated for at least 25A continuous: CTEK PRO25S, Schumacher INC-25A, or equivalent. Plugged in for the full visit, not just the start of the session.

6. First-key (all-keys-lost) recovery is a fundamentally different job

With one working key present, the BCM trusts its existing immobilizer secret and the new fob is added into a free key memory slot through a standard adaptation. With zero working keys, the technician must request a Component Protection unlock against the VIN from Volkswagen's online portal, and that request is gated by NASTF VSP (Vehicle Security Professional) registration in North America. Without VSP, a shop can sell a fob and cut a blade, but cannot deliver a starting key on a 2018-plus Tiguan. The "$250 Tiguan key" listings online without VSP credentials are technically selling parts; the program-it-yourself path simply does not exist on this platform. Canadian Locksmiths holds active VSP credentials and is one of a handful of mobile shops in Essex County that does.

7. HU162T blade tolerance and the Triton PLUS

The HU162T blade has 8 cut positions, each cut to one of 7 depth values stepped at roughly 0.5 mm. A Triton PLUS Automotive Edition cut to specification holds the blade within ±0.025 mm. Hand filing or universal laser cutters without a dedicated HU162T jaw (the no-name units on AliExpress at the $1,200 price point) drift to ±0.15 mm or worse. The Tiguan's wafer lock binds at around ±0.05 mm cumulative error. The drifted blade rotates 45 degrees, hits the bind point, and locks up. The repair is not shimming or "working it in"; it is recutting on a proper jig. Canadian Locksmiths uses the Triton PLUS Automotive Edition with the 4-way Automotive Jaw and HU162T fixture set; blades come out within Volkswagen spec, every time.

8. KESSY antenna coding (Tiguan-specific)

KESSY passive entry uses five antennas: four B-pillar door pillars plus the trunk lid coil. Antenna coding lives under address 0009 (KESSY), long coding bytes 5 through 9. The "passive entry works at three doors but not the rear passenger" complaint traces almost always to a B-pillar antenna failure (a known weakness on 2019-2021 Tiguan rear doors) or a long coding byte that was not updated after a door swap from a base-trim car that did not have KESSY. ODIS reads the existing coding, the technician compares against the VIN's factory configuration in ElsaWin, and the conflict is obvious in under a minute. The non-ODIS fix is to swap doors back, which is not really a fix.

9. Used-fob seed-key reset

A fob pulled from another Tiguan still carries the seed-key signature from its previous BCM. Pairing that fob into a new BCM throws SVM error code 2: "key data inconsistent with vehicle". ODIS under address 0017 has a Component Protection > Reset Key Seed function that wipes the previous BCM binding and lets the fob be re-paired clean. Salvage-yard fobs are sometimes shipped pre-cleared; most are not. The clearing step is what separates a used fob that works from one the customer paid for and gets blamed on the locksmith.

10. SVM ticket queue and the holiday window

Volkswagen Canada's MirrorServer queues SVM tickets in arrival order, globally. Friday afternoons before long weekends, and the first business day after a stat holiday, are the worst: a single ticket can stretch from the usual 30 to 90 seconds out to 8 to 15 minutes per write. On a Tiguan spare-key visit, that is the difference between a 60-minute appointment and a 100-minute appointment. Canadian Locksmiths schedules MQB-Evo Volkswagen and Audi work early in the day mid-week whenever the customer's schedule allows, to avoid the queue back-pressure stacking on top of an already programming-heavy job.

Cost and what to expect

A Volkswagen Tiguan spare smart key, programmed and verified on-site in Windsor or anywhere across Essex County, starts at $399. Most jobs fall between $499 and $749+ once the specific fob part number, programming tool time, and door blade work are accounted for. A full quote is given before the technician dispatches; there are no surprise add-ons after the appointment.

For comparison, the typical Volkswagen dealer route on the same car involves a tow to the dealership (often $150 to $250+), a service bay slot that may be days out, and a labour book rate that lands in the $800 to $1,200+ range before the fob itself is invoiced.

Book a Volkswagen Tiguan spare smart key with Canadian Locksmiths or call (519) 979-1270 for a full quote against the VIN before dispatch.

Frequently asked questions

Q: Can a Tiguan spare key be programmed without bringing the car to a dealer? A: Yes. Canadian Locksmiths uses ODIS-S with active Volkswagen Group online SVM credentials, which is the same software the dealer uses. The job is finished at the customer's location, with one mobile visit and no tow.

Q: How long does the appointment take? A: A spare smart key with one working key already present is generally a 45 to 75 minute appointment, depending on whether the door blade needs to be decoded on-site or is cut to a known door code.

Q: Will the original key still work afterward? A: Yes. ODIS adds the new key to the BCM's memory without removing the original. Both keys leave the appointment fully paired.

Q: What if all the keys are already lost? A: All-keys-lost recovery on a 2018-plus Tiguan is a separate, longer job that requires a security access pin pulled online against the VIN. Canadian Locksmiths handles those too, and the call is best made before the car gets towed anywhere.

Q: Which Tiguan years are covered by this MQB-Evo workflow? A: 2018 through 2024 Tiguan trims sold in Canada, including S, SE, SE R-Line Black, SEL R-Line, R-Line, Comfortline, and Highline. Pre-2018 Tiguans use an older MQB or PQ35 immobilizer and follow a different procedure.

Q: Does Canadian Locksmiths service Tiguans outside Windsor? A: Yes. Mobile dispatch covers Windsor, Tecumseh, LaSalle, Lakeshore, Amherstburg, Essex, Kingsville, Leamington, and the rest of Essex County, Ontario.
